Products > FIB Replacement Parts

Aperture Strips   |   Suppressors & Extractors

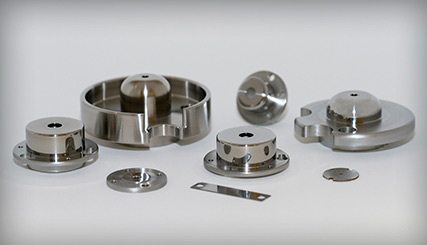

Suppressors & Extractors

Maintaining stable suppressor and extractor voltage is important for overall focused ion beam performance. Over time, sputtered material and evaporated Gallium collects in the extractor and suppressor so these parts need to be exchanged at regular intervals.

Replacement FIB consumables from Oregon Physics provide a cost effective option for maintaining optimal FIB performance. Our parts are made to exacting standards, and our fast delivery times assure that your parts will be in hand quickly, ready for installation.

The table below provides ordering information specific to your FIB column. Oregon Physics supports FEI's range of ion columns.

Tomahawk Column

Sidewinder Column

Magnum Column

Prelens Column

Extractor Assembly (High Current)

Extractor Assembly (High Current)

Quick Change Kit

Extractor Cap

Suppressor

Extractor Assembly (Std 20 nA)

Extractor Cap

Suppressor



Suppressor

Suppressor

Beam Acceptance Aperture and Sputter Shield Kit





Beam Acceptance Aperture and Sputter Shield Kit

Beam Acceptance Aperture





Beam Acceptance Aperture

Sputter Shield





Sputter Shield





If you need assistance with the installation of FIB consumable parts, please let us know and we will refer you to an experienced, trusted FIB system service partner in your area.

Examining an aperture strip

NewsGet a Quote

Inquire about our suppressors and extractors using the form below. If you are uncertain about which parts you need, or need multiple parts, please utilize the comments field for this additional information.
